echarts实现动态传入数据刷新【可执行】
<!DOCTYPE html>
<head>
<meta charset="utf-8">
<title>ECharts</title>
</head>
<body>
<!-- 为ECharts准备一个具备大小（宽高）的Dom -->
<div id="main" style="height:400px"></div>
<!-- ECharts单文件引入 -->
<script src="../js/tld/echarts3.min.js"></script>
<script type="text/javascript" src="../js/jquery-1.4.2.min.js"></script>
<script type="text/javascript">
var myChart;
function display(){
myChart = echarts.init(document.getElementById(‘main‘));
myChart.setOption({
title: {
text: ‘异步数据加载示例‘
},
tooltip: {},
legend: {
data:[‘销量‘]
},
xAxis: {
data: []
},
yAxis: {},
series: [{
name: ‘销量‘,
type: ‘bar‘,
data: [1,2,3,4,5,6]
}]
});
// 初始 option
option = {
title: {
text: ‘异步数据加载示例‘
},
tooltip: {},
legend: {
data:[‘销量‘]
},
xAxis: {
data: []
},
yAxis: {},
series: [{
name: ‘销量‘,
type: ‘bar‘,
data: []
}]
};
}
function fetchData(cb) {
// 通过 setTimeout 模拟异步加载
cb({
categories: ["衬衫","羊毛衫","雪纺衫","裤子","高跟鞋","袜子"],
data: [Math.random(5), Math.random(20), Math.random(36), Math.random(10), Math.random(10), Math.random(20)]
});
}
function abc(){
fetchData(function (data) {
myChart.setOption({
xAxis: {
data: data.categories
},
series: [{
// 根据名字对应到相应的系列
name: ‘销量‘,
data: data.data
}]
});
});
}
</script>
<input type="button" value="display" onclick="display()" />
<input type="button" value="refresh" onclick="abc()"/>
</body>

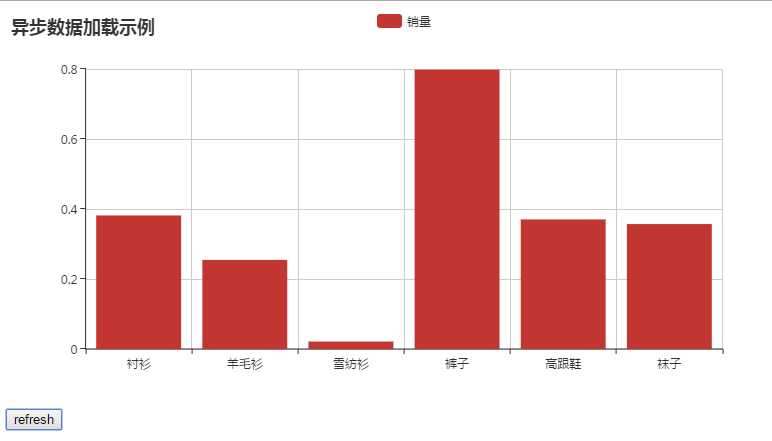

点击refresh按钮：

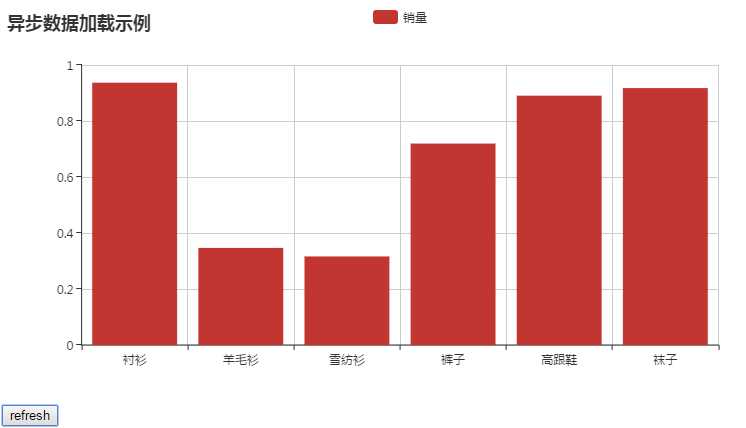

再次点击refresh按钮
